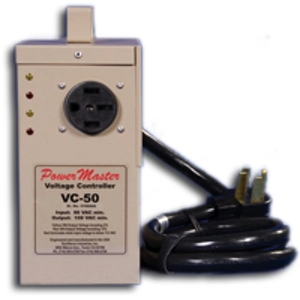

The VC-50 is a dual transformer 50 amp autoformer voltage controller for RVs with a 50 amp power requirement. The VC-50 incorporates revolutionary new internal switching control for simple and problem-free operation. In addition, the surge protection feature now rivals that of expensive, commercial-grade surge protectors.
Features
Max boost 12%
Surge Protection to 3,580 Joules
S W=9" L=5" H=12"
Wt. 40 lbs.
Made in the USA
2 year limited warranty
Optional Accessories
Hard wired kit: consists a 5-foot, 50 Amp cord with male plug and a
50 Amp female receptacle to allow the VC-50 to be internally mounted.
| Why do I need Voltage Control for my RV? RVing is more popular than ever! The downside is that parks are filling with more RVs with increasingly sophisticated appliances and electronics. Frequently the demand for power outstrips the park's ability to deliver it and low voltage can damage electronics or even make them completely inoperable. |
|
Replacing appliances is costly (not to mention inconvenient, a waste of time, and a hassle to have replaced). More often than not, you will not even realize there's a problem until you see the smoke! Many AC motors will burn out when they draw too much current, which is what happens when there's insufficient voltage. When the power supplied by the park is too is low for an appliance or group of appliances being operated (for example, if you're running both the air conditioning and the microwave), you will generally not be able run those appliances or any additional appliance without risk of damage. Voltage controllers (commonly known as 'auto-formers' in the RV industry) are designed to increase voltage to your RV and help eliminate low voltage damage to your appliances. Unlike a 'boost transformer', PowerMaster autoformers will automatically adjust the output based on the load demand. Therefore, you can run additional appliances on a 30 amp input. For example: a coffee pot and microwave each draw 1,200 watts for a total of 2,400 watts. Add wattage for the converter and refrigerator – about 800 additional watts – and you have 3,200 watt demand. If you are only getting 100 volts from the supply, the maximum wattage would be 3,000 watts. The output of the PowerMaster autoformer will self-adjust depending on the demand. With the increase in the voltage to the RV (through the voltage controller) the amperage demand will be lower and the overall performance will be greater. Your appliances will operate smoothly & efficiently without premature wear & damage to motors and compressors. With an operation range of approximately 94 to 125 volts input, the PowerMaster autoformer will boost your RV voltage to safe & efficient levels. |
