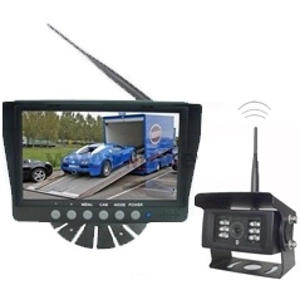

Digital wireless rear view camera system consisting 7"TFT LCD monitor with in-built digital wireless receiver and waterproof wireless camera with IR LEDs.
Suitable for use on an RV, Trailer, Car, Truck, Bus, SUV, Motor home, Boat and Farm equipment.
Specifications:
Monitor
7" Digital monitor with Removable Sun Visor
4 Channel wireless video in
Display resolution: 800(H) X 480(V) dot
Operating voltage DC12-32V
Color system: PAL/NTSC
OSD MENU Set Camera Trigger Priority
OSD MENU Set Camera Reversing Image Delay Time 0-10"
OSD MENU Set Camera Mirror/Normal image
Built in (2.414/2.432/2.450/2.468)GHz Digital Wireless Receiver
2.4GHz Digital FHSS Hopping and Pairing Technology
Receiving sensitivity: ≤-85dB
Operating temperature: -20℃ to +70℃
Storage temperature: -30℃ to +80℃
Load Dump: DC14+67V(Td400mS) 5pulses
Camera
Built in 2.4GHz transmitter and omni-directional antenna
Transmission power : 10mW/CE; 2mW/FCC
Approx 300' (100m) wireless transmission range (LOS)
Image type: 1/4'' Sony Color CCD
Horizontal resolution:420TV Lines
Effective pixel:NTSC:510(H)X492(V);PAL:500(H)X582(V)
Lens: 2.5mm
IR LEDs: 12
Minimum illumination:0 Lux (LED on)
Night vision distance: 15m (45ft)
Free viewing angle: 120°
Shockproof: 10G
Waterproof: IP69k
Operation Temperature : -4°F - 158°F (-20°C~+70°C) RH95%Max
Storage Temperature : -22°F - 176°F (-30°C~+80°C) RH95%Max
Operating Voltage: DC12-24 Volts
Dimensions: 3"x 2.5" 3" (75(W)X45(D)X75(H)mm)
Weight : 7 oz (200g)
Accessories
Monitor bracket
Auto lighter adaptor
Remote control
User's guide
SMA antenna (Camera)
SMA antenna (Monitor)
Categories
Categories
Single camera digital wireless rear view camera system with 7" monitor
$370.00 inc. tax
$370.00 inc. tax
JY-DW7-6731
