This market leading InnotechRV wireless TPMS System is designed to continuously monitor tire pressure and temperature, and offer both visual and audible warnings in case of significant tire problems. Unlike most systems this is not just a rebranded factory model. Our in-house electronic and software engineering team have significantly improved signal processing and added functionality and capability not found in other systems.
- For large RVs & trucks
- Easy to install, easy to use
- Pressure Range 0-232 psi
- Monitors from 4 to 22 wheels
- World's smallest external sensors
- High Accuracy
- Visual & Audible Pressure loss warnings
- Low pressure and high pressure alarms
- Leak alarm generates up to 5 times more response than other systems
- Temperature alarm if tire temperature rises above 149f/65c
- Dual pressure settings for on road/off road or multiple trailers
- Trailer disconnect function
- Instant readings reset function
- Improved sensor locking system
- User replacable CR1632 batteries (minimum 1 year life expectancy)
- Three year warranty for recreational users (12 month commercial)

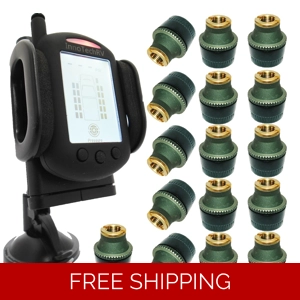

Kit Includes:
- TPMS Monitor with mounting cradle
- 18 screw on pressure/temperature transmitters and batteries
- 12/24v car charger
- 18 anti-theft locks with wrench
- Repeater/Booster
Alarm Conditions
- Base line is set at normal cold tire pressure for each tire individually
- Low Pressure alarms - 15%, 25% and 50% drop from cold tire pressure
- High Pressure alarm - 20% above cold tire pressure
- Fast & Slow Leak alarms - 3psi drop over 2 mins or 10 mins (fast/slow)
- Temperature - 149f/65c and 167f/75c
